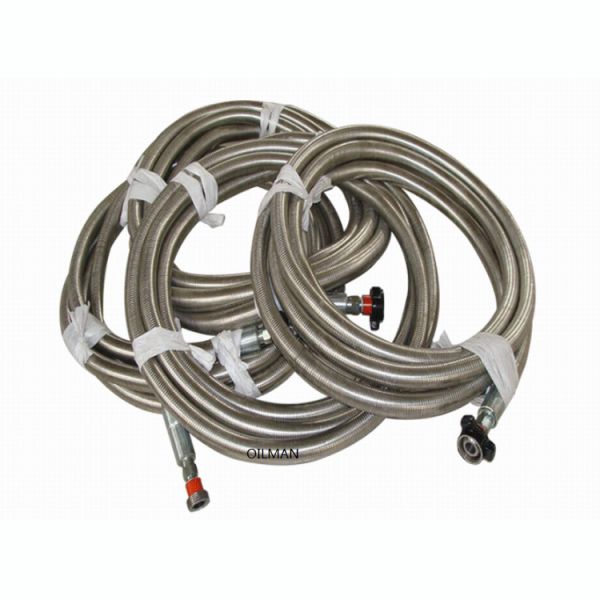

API 16D BOP control hoses (BOP hydraulic control lines) used for blow-out prevention systems are manufactured with superior components to operate withstand tough crisis oilfield conditions. These hoses are designed to hold full working pressure and allow continued operation of the BOP control systems ever in the harshest of fires.
BOP control hoses feature in high pressure resistance, high temperature resistance and fire resistance. Specified standard API 16D, blowout preventer hoses are ideally suited for high pressure hydraulic applications for drilling well control equipments, and capable of containing the hose rated working pressure in a flame temperature of 1300°F (700°C) for a 5-minute period.
Certification/Standards:
API Spec 16D--ISO 14693
Recommended For:
Blow-out preventer (BOP) systems requiring high pressure, high temperature and flame resistant control lines certified to API 16D.
Armored hose assemblies with flame resistant cover withstand minimum 1300°F (+700°C) flame temperature at working pressure for 5 minutes without failure.
Tube: Modified Nitrile. Black.
Reinforcement:
Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.
Cover:
Fire resistant, rubber cover, stainless steel armored to handle abrasion, corrosion, cutting, gouging, oil and weather.
Couplings:
Crimped couplings with over-ferrule fire protection.
Temperature:
-40°F to +212°F (-40°C to +100°C) continuous service.
Options:
Accessories such as API 16D quick connector, self-sealing union and exterior armor to protect hoses against extreme environmental damage are available upon request.
Technical Parameter:
| Hose ID | Hose O.D. | Working Pressure | Min. Bend Radius | Weight | Max. Hose Length |
| (In.) | (mm) | (In.) | (mm) | (psi) | (MPa) | (In.) | (mm) | kg/m | lb/ft | ft | m |
| 1/4 | 6 | 0.77 | 20 | 5000 | 35 | 4 | 102 | 0.66 | 0.37 | 330 | 100 |
| 3/8 | 10 | 0.93 | 24 | 5000 | 35 | 5 | 127 | 0.77 | 0.52 | 330 | 100 |
| 1/2 | 13 | 1.05 | 27 | 5000 | 35 | 7 | 178 | 0.98 | 0.63 | 330 | 100 |
| 3/4 | 19 | 1.38 | 35 | 5000 | 35 | 9.5 | 241 | 1.64 | 1.05 | 200 | 60 |
| 1 | 25 | 1.67 | 42 | 5000 | 35 | 12 | 305 | 2.62 | 1.77 | 200 | 60 |
| 1 1/4 | 32 | 2.11 | 54 | 5000 | 35 | 16.5 | 419 | 3.94 | 2.67 | 200 | 60 |
| 1 1/2 | 38 | 2.41 | 61 | 5000 | 35 | 20 | 508 | 4.59 | 3 | 200 | 60 |
| 2 | 51 | 2.96 | 75 | 5000 | 35 | 25 | 635 | 8.53 | 5.73 | 200 | 60 |
